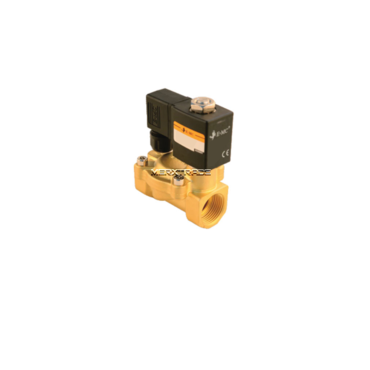

Solenoid valve 2/2-way Brass/FKM (Viton) NO normaly open 24V AC thread BSPP
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
VITON®
BSP
Normaly-open
| Model: | Normaly open | Material body: | Brass |
| Connection: | Thread BSPP | Material inner parts: | Brass / stainless steel |
| Voltage: | 24V AC | Material seals: | FKM (Viton) |
| Operating pressure: | see tabel below. | Material pilot: | Plastic |
| Temperature range: | -10°C to +130°C | Protection class: | IP65 |
| Installation position: | With upright magnets | Brand: | E-CM |
| Media: Compressed air, neutral gases, water, neutral low-viscosity media, other media on request | |||
| Size: | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1.1/4" | 1.1/2" | 2" |
| Pressure bar: | 0-13 | 0-13 | 0,5-16 | 0,5-16 | 0,5-16 | 0,5-16 | 0,5-16 | 0,5-16 | 0,5-16 |
| kv value l/min: | 3,2 | 3,2 | 64 | 64 | 108 | 171 | 313 | 427 | 684 |
Warning:
For opening or closing, servo-controlled valves require a pressure difference between the valve inlet and valve outlet. The pressure difference is given as minimum pressure. There is a pressure compensation in the valve, resulting that no or little medium is used at the valve outlet, the valve will no longer function (it opens or closes unreliably).
Datasheet (PDF)
| SKU | ELP00NOE7V |
|---|
| Body material | Brass |
|---|---|
| Seat | FKM-FPM-Viton® |
